Mercury Hg Floats

Float Quote Form

Quote: Mechanical & Mercury

Operation:

  • Normally Open (Pump Down)
  • Normally Closed (Pump Up)
  • Double Throw (SPDT)

Cord:

  • 16 AWG Black SJOW
  • 16 Yellow SJOOW or SOOW
  • 16 AWG Black SJTOW
  • 18 AWG Black SJOOW

Ratings:

  • A & B Series
    • 1 AMP @ 120 VAC
  • C, D & E Series
    • Up to 13 AMP @ 120 VAC
    • Up to 6 AMP @ 240 VAC

Operating Angle: Narrow & Wide Angle

"A" Series: Narrow Angle
Contacts close @ 5° above horizontal
Contacts open @ 5° below horizontal

"B" Series: Wide Angle
Contacts close @ 45° above horizontal
Contacts open @ 45° below horizontal

"C" Series: Narrow Angle
Contacts close @ 5° above horizontal
Contacts open @ 5° below horizontal

"D" Series: Wide Angle
Contacts close @ 30° above horizontal
Contacts open @ 30° below horizontal

"E" Series: Wide Angle
Contacts close @ 45° above horizontal
Contacts open @ 45° below horizontal

Available in the "J" series float package.

UL & CSA Markings

Possible Markings

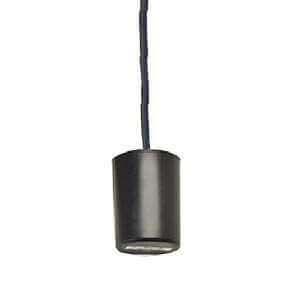

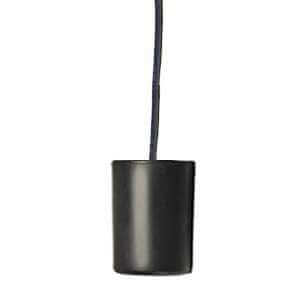

Small Mercury Float

Click to Enlarge

"A" & "B" Series


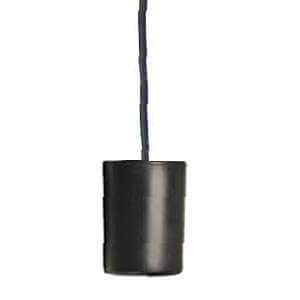

Standard Mercury Float

Click to Enlarge

"C", "D" & "E" Series


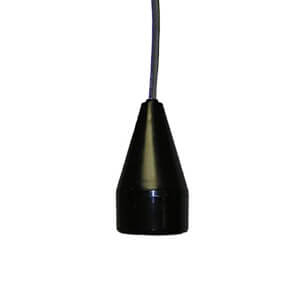

Click to Enlarge

"A", "B", "C", "D" & "E" Seires

Small Mercury Float (ABS Only)

Click to Enlarge

A & B Series Floats

Standard Black Mercury Float (HIPS Only)

Click to Enlarge

Standard Yellow Mercury Float (HIPS Only)

Click to Enlarge

Standard Green Mercury Float (ABS Only)

Click to Enlarge

C, D & E Series Floats


SpecSheets
