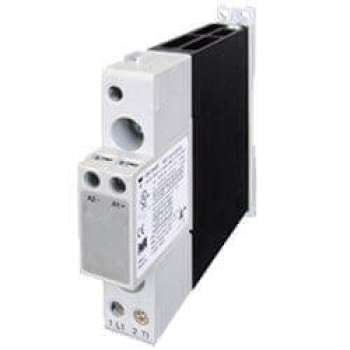

Solid State Relay - 30 AAC - Single Pole - AC Control - SSR Contacts

SKU: SS30AU-1

Price: $66.99

This replaces the old SS30AU.

This new range of solid state contactors presents an unique opportunity to maximize efficiency in panel space and is an evolution of solid state switches. The nominal current ratings are at 40°C. The width is 22.5mm and is rated at 30 AAC. Power and control terminals allow for safe looping of cables.

Voltage transient protection is standard across the output with a varistor.

PDF Data Sheet

Manufacturer: MDI Relays & Switches

Weight: 0.6 lb

Delivery: 1 - 6 weeks

  • Competitor Crosses:
    • Carlo Gavazzi: RGC1A23A30KGU
    • Carlo Gavazzi: RGC1A60A30KGU

Specifications are stated at 25°C unless otherwise noted.

  • Line & Load accepts: 10-18 AWG
  • Rated Operational Current: 250 mAAC to 30 AAcrms
  • Motor Ratings
    • 115 VAC: ¾ HP / 0.37 kW
    • 230 VAC: 2 HP / 1.1 kW
    • 400 VAC: 3 HP / 1.5 kW
    • 480 VAC: 5 HP / 2.2 kW
    • 600 VAC: 5 HP / 3.7 kW
  • Filtering
    • Suggested Filter: 220 nF / 760 V / X1
      • Max. Heater Current: 30 AMPS
  • Function: 1-Phase - Zero Cross Switching
  • Operational Voltage Range: 42-600 VAC
  • Control Voltage: 20 - 275 VAC (24 - 190 VDC)
  • 1800A²s for l²t and 1200Vp blocking voltage

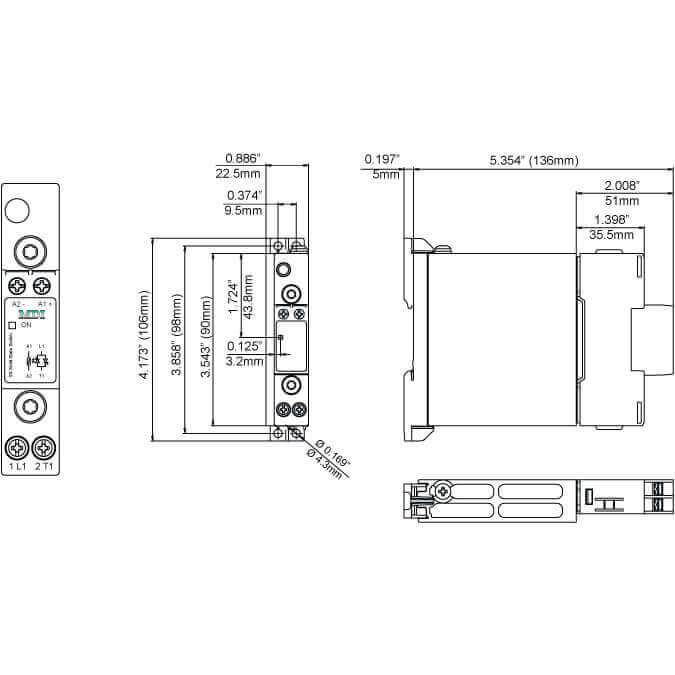

  • Product Width 0.89" (22.5mm)
  • Integrated voltage transient protection with 625V varistor
  • Short circuit current rating: 100kA
  • Mounting: DIN-rail mounting
  • IP20 protection
  • Design according to EN/IE60947-4-2, EN/IEC60947-4-3, EN/IEC62314, UL508, CSA 22-2 No. 14-10
  • RoHS compliant
  • VDE approval
  • Germanischer Lloyd approval
