Hybrid Timer
SKU: ETOO-48D-J0
Price: $375.99

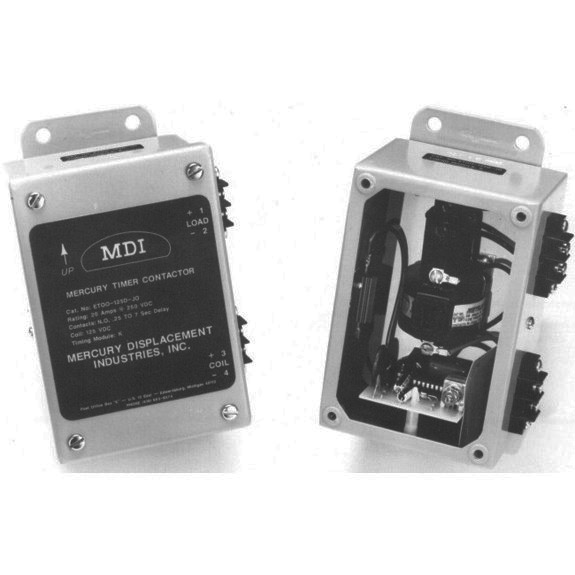

MDI ETO Hybrid Timer
- CMOS digital circuitry
- Time delays to 3 minutes
- Adjustable time delay
- No first cycle effect
- SPST 20 Ampere Output rating (Limited by Terminals, Relay rated at 35 AMPS)
- NEMA 4 enclosure
- External terminal strips for all connections
- Fully Solid State timing
- 2 wire time delay on operate
- Screw driver adjustable with lock
Manufacturer: MDI Relays & Switches
Weight: 3.64 lb
Stock Quantity: Made to Order
Delivery: Ships in 5-8 Business Days
10 to 24
$342.37
25 to 49
$328.81
50+
$322.30
This product contains mercury.
Please click to check if you are in IMERC compliance.
- TIME DELAY
- Type: Digital CMOS circuitry
- Ranges:
- .25 to 7 Sec.
- 5 to 120 Sc.
- 120 to 360 Sec.
- Repeat accuracy: ± .5% ± 10m Sec.
- Reset time: 100 Milliseconds
- Time delay voltage variation: ± 30m Sec.
- INPUT
- Operation Voltage:
- Tolerance: -15%, +20% nominal
- OUTPUT
- Tube: Mercury Displacement type relay
- Form:
- Single Pole Single Throw
- Normally Open
- Normally Closed
- Ratings:
- 20 Amperes @ 250 VDC
- 20 Amperes @ 600 VAC G.P.
- Life: 10,000,000 operations full load
- PROTECTION
- Transient: 2.5 KV surge per ANSI C37 -.90. Reverse voltage protection
- Timing circuit inhibited below 50% of nominal voltage
- Dielectric Breakdown: 1500 VDC
- MECHANICAL
- Enclosed in 4" x 6" NEMA 4b Box
- Mounting: 4 External .31 DIA. holes on 7.5 x 2 pattern
- Must be mounted within 10° of vertical
- Termination: Barrier strips, #6 screws, (20 Amp rated) on exterior of enclosure
MDI Inc. Our Company!
See all MDI Electrical Products
Mercury Displacement Industries Incorporated, better known in the industry we serve as MDI, was incorporated in Michigan in 1975. The primary product line is switch gear components including mercury type contactors, tilt switches and liquid level float controls.
Contactors are rated from 30 to 100 Amperes and are commonly used in various heating, lighting, and many other industrial applications including high voltage ultraviolet type loads. The contacts are encased in hermetically sealed stainless steel tubes to provide reliable switching for millions of operations. All basic units are UL, CSA, and CE approved.
The liquid level control floats are manufactured with mechanical or mercury switches. The float material is High Impact Polystyrene for normal alarm, sump pump or water applications, For sewage, 1 or 2 H.P. or high temperature, 86°C (186°F) requirements Acrylonitrile Butadiene Styrene, (ABS) float material is provided.
MDI has 40 to 50 employees and markets products through distributors, representatives or direct to OEM accounts throughout the world.
