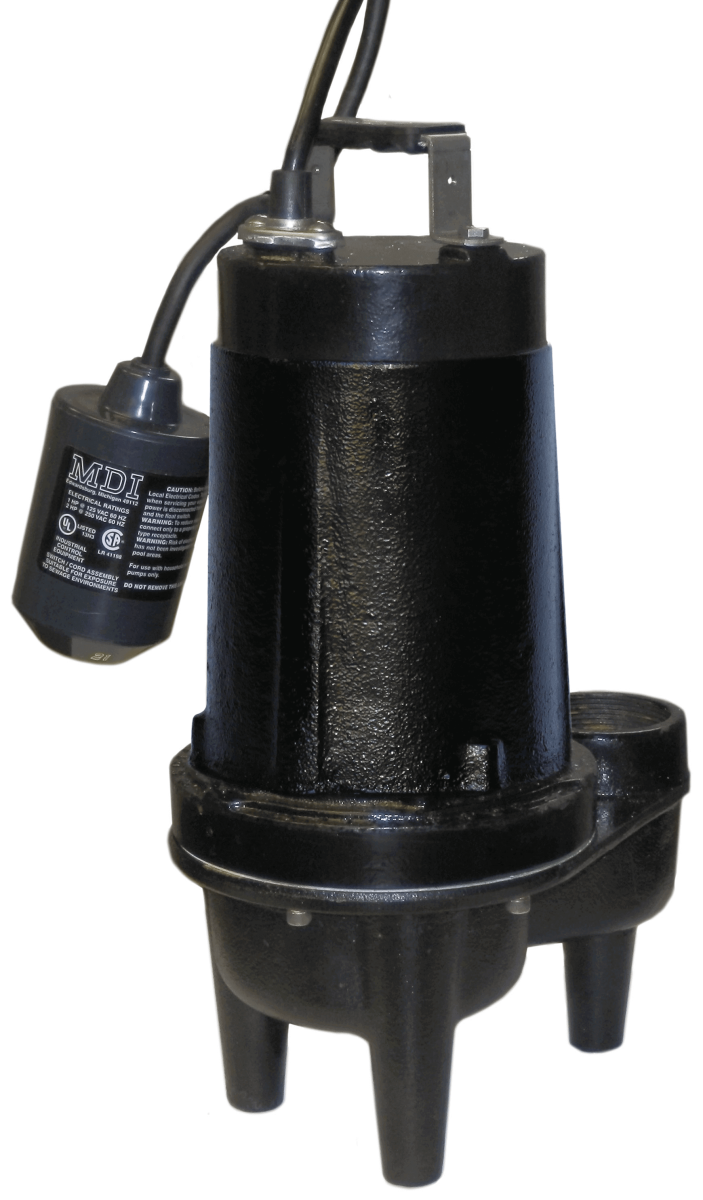

Champion Sewage Pump - 1/2 HP - 230 VAC - 20 foot cord - 109 GPM - 25 foot Head w/ Float Switch

SKU: CPW5-22 H

Submersible non-clog sewage pumps are designed for typical raw sewage application.

Model: CPW5-22 H

  • 1/2 HP
  • 5.75 Amps
  • 230 VAC 60 Hz Single Phase
  • 20 foot Cord
  • HF2OU20F1 Heavy Duty Float Switch

FEATURES/BENEFITS

  • High Efficient Motor With Upper & Lower Ball Bearings/ Runs Cooler & Last Longer
  • Cast Iron Vortex Impeller/ Helps Prevent Clogging
  • Inboard Seal-Rotating Components Of Seal Are In The Motor Housing, Lubricated By The Motor Oil/ Seal Will Last Longer If Pump Runs Dry, Hair And Debris Cannot Wrap Around Seal Components
  • Secondary Exclusion Seal/ Keeps Debris From Entering Seal Cavity
  • Sealed Entry-Replaceable Power Cord/Easy To Replace In The Field, Prevents Water From Entering The Motor Housing Through A Cut Power 20' Cord
  • Piggy-Back Switch Design/ Defective Switches Can Be Diagnosed By Phone; Pump Can Be Operated Manually by Overriding The Switch
  • Every Pump Is Tested in Water/ Ensures That The Pump Meets Head & Flow Requirements

PDF Spec Sheet

Manufacturer: Champion Pump

Weight: 41 lb
Stock Quantity: Made to Order

Delivery: Ships in 5-8 Business Days


Please use the "Request More Info" form


Here is a list of competitors equivalent pumps.

Barnes
SE511A (096753)
SE521 (096755)

Goulds
PS52P1F

Hydromatic
SP50A2
SKV50A2
SK50A2
SKHS50A2

Liberty
LE52A

Little Giant
WS52HAM-12 (620257)

Myers
MW50-21P
MWH50-21P

Sta-Rite
SC550210T
SC650210T
SC750220T

Zoeller
D266
D267

APPLICATIONS

  • Basements; Dewatering, Septic Systems, Sewage Lift Stations/Add A Baths, Truck Docks
  • Discharge 2" NPT.
  • Solids Handling 2"
  • Liquid Temperature 140 Degrees F. (Intermittent)
  • Motor Housing Cast Iron
  • Impeller Cast Iron/Vortex
  • Shaft Stainless Steel
  • Shaft Seal Inboard Mechanical With
  • Secondary Exclusion V-Seal
    Carbon- Rotating Face
    Ceramic- Stationary Face
    Buna-N-Elastomer
    300 Series Stainless Steel-Hardware
  • Bearing (Upper & Lower) Single Row, Ball, Oil Lubricated
  • Hardware 300 Series Stainless Steel
  • Square Rings Buna-N
  • Cord (UL/CUL) Listed 16 AWG, Type SJTW 20' Length
  • Cord Entry Compression Grommet- Outer Jacket Seal, Quick Disconnect Pin Terminals
  • Motor (Single Phase) 1/2 HP, 3450 RPM, 60Hz NEMA L Includes Overload Protection In The Motor.
    Oil Filled, Class B
    Permanent Split Capacitor
  • Weight 38lbs (Manual)
