Double Avocado Float Switch - 20 Foot - 240 VAC with Piggyback Plug - Normally Open - 60 Inch Pumping Range

SKU: JTFD-060-U20R2

Price: $102.99

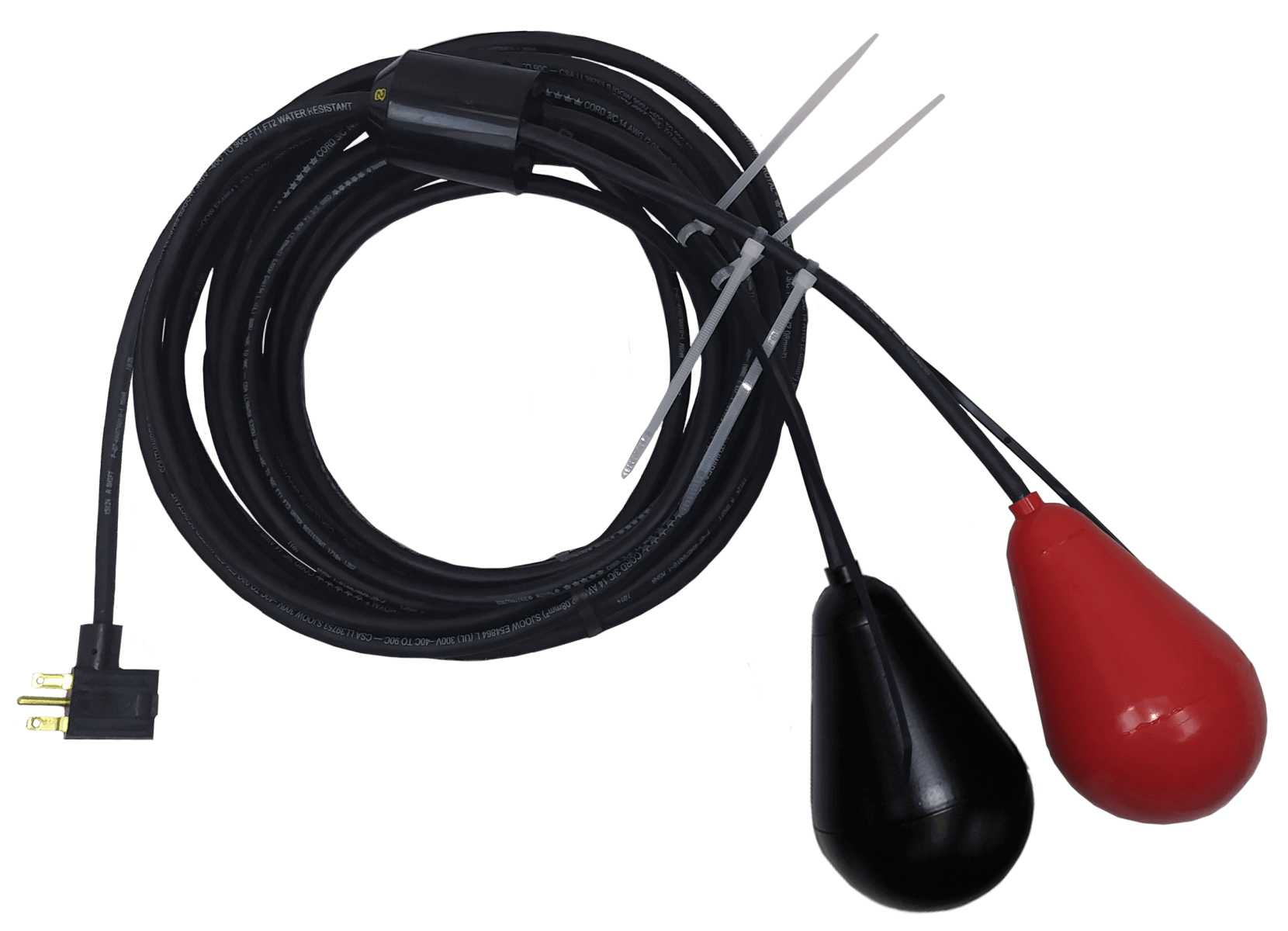

The Double Float Switch consists of two Avocado floats, each float contains our standard "JH" series Avocado Float Switch. The boot contains a heavy-duty latching relay, which enables the double floats to function together. The relay eliminates pump chatter in turbulent conditions.

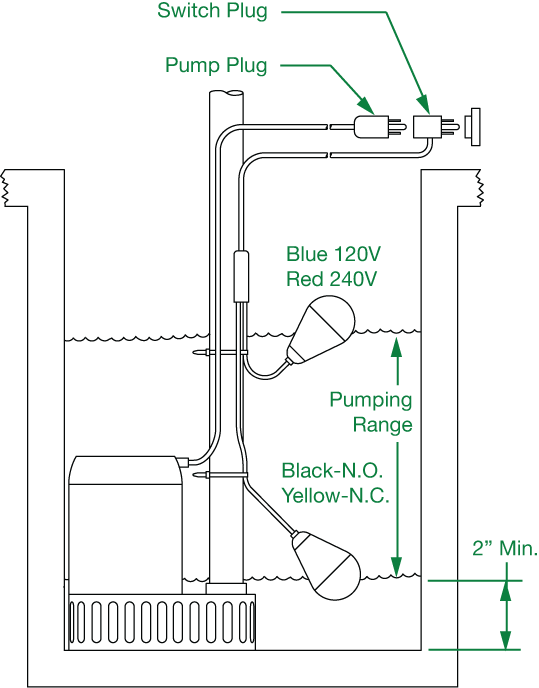

The unit is well suited for narrow and deep sump pump pits. This normally open or pump down (circuit is complete when both floats are elevated) model, the pump is turned on when activated by the top float switch. The pump stays on until the bottom float switch turns it off, this allows a pumping range of about 60".

Manufacturer: MDI Sewage Products

Weight: 3.83 lb
Stock Quantity: Made to Order

Delivery: Ships in 5-8 Business Days

1 to 9
$102.99
10 to 24
$87.54
25 to 49
$79.82
50 to 99
$74.67
100+
$72.09

  • Operation:
    • Normally Open (Pump Down)
  • Cord:
    • 20' Flexible 14 Gauge SJOOW (UL & CSA) CPE (Chlorinated Polyethylene) Jacketed
  • Ratings:
    • 15 AMP @ 240 VAC
    • 2 H.P. @ 240 VAC
    • 96 LRA
  • Piggyback Plug
    • 240 VAC (NEMA 6-15)
  • Housing:
    • 3.50" Dia x 5.75"
  • Float Material:
    • A.B.S. (Acrylonitrile Butadiene Styrene)
  • Specific Gravity:
    • 0.5
  • Operating Temperature:
    • Up to 82ºC/180ºF
  • Pump Range:
    • Pumping Range About 60"
  • Float Switch:
    • Mechanical (Contains no mercury)
  • Warranty:
    • 1 Year

Made in the USA

UL Recognized
