HPR Solid State Relay - 80 AMP - Single Pole - DC Control

Price: $63.49

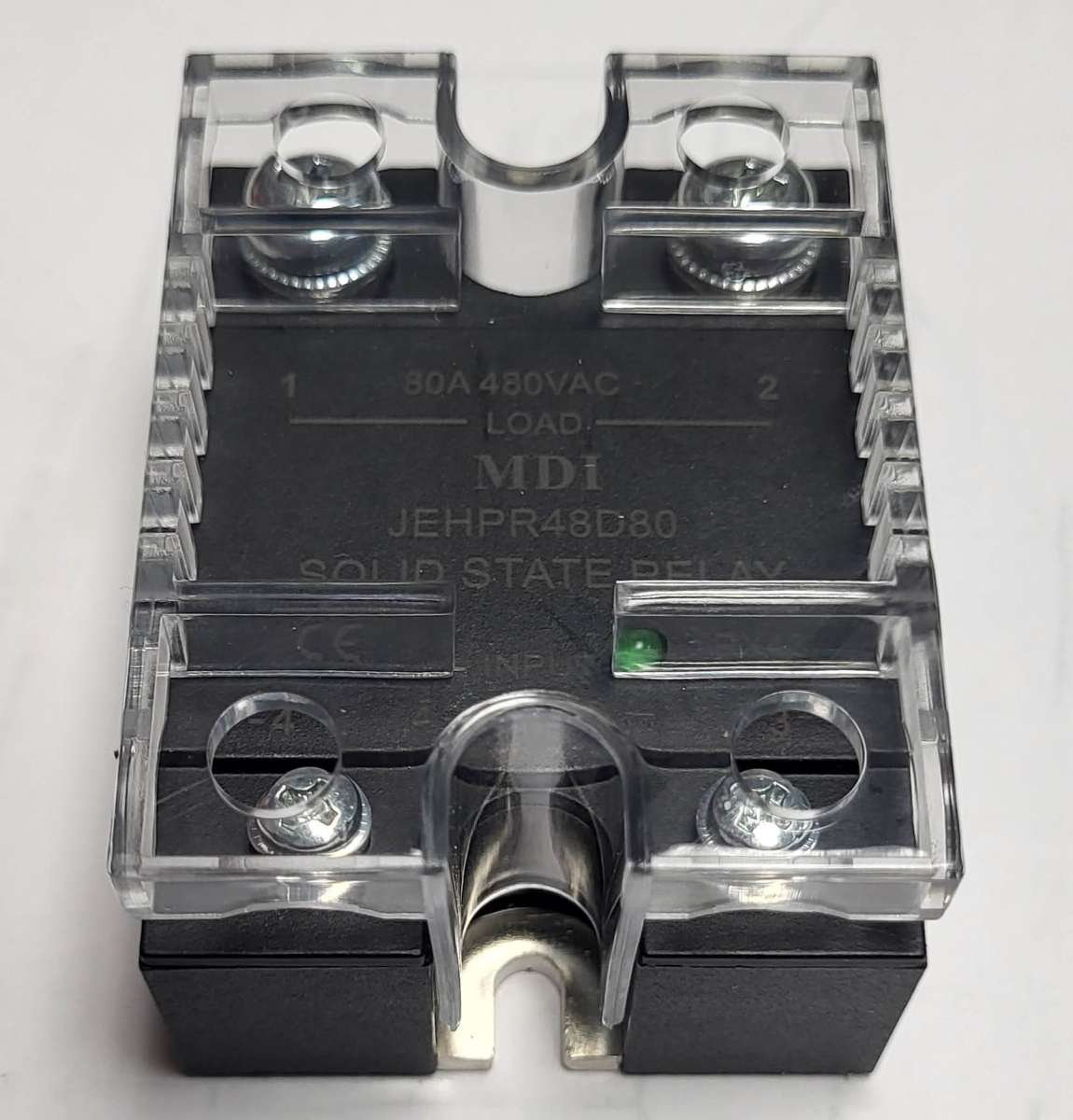

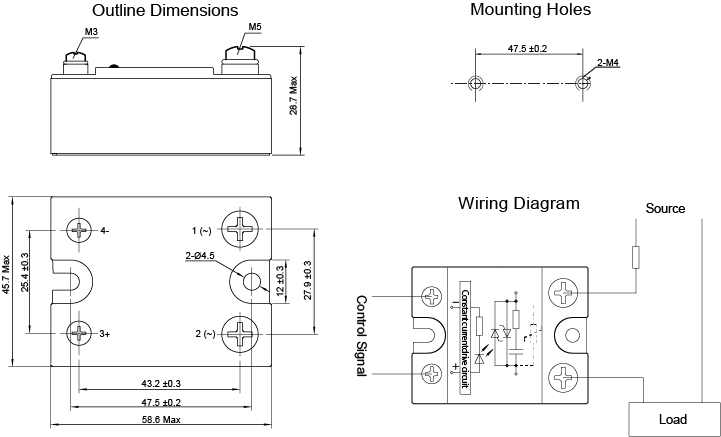

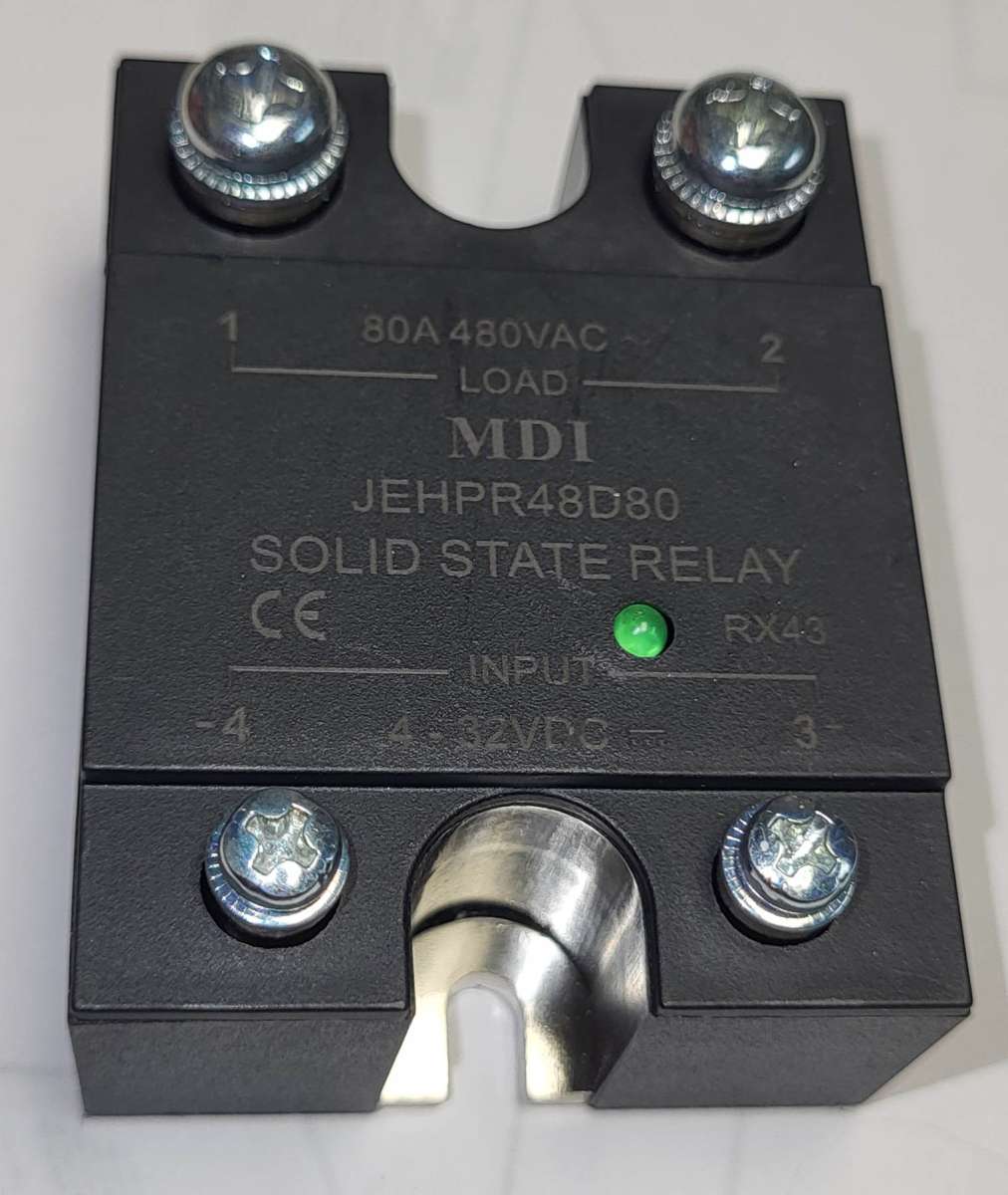

JEHPR is a high power solid state relay, with 4 - 32 VDC input control voltage, with output current 80A and load voltage of 480 VAC. SCR output provides high dv/dt capability more than 500v/µs. The relays provide 4000VAC opto-isolation between input and output. Encapsulating with epoxy resin. Outline dimension is 58.6mm X 45.7mm X 28.7mm.

Product Features
- Photoelectric isolation
- LED status indicator
- Removable protective cover
- Dielectric strength 4000V
- Zero-cross switching
- Panel mount
- DC Control
- SCR output

Weight: 0.5 lb

Quantity

Click to Enlarge

Competitor Crosses:
- Carlo Gavazzi: RM1A48D75

Input Parameter (Ta=25°C)
- Input Accepts: M3 Screws
- Control Voltage Range: 4 - 32 VDC
- Max. Turn-On Voltage: 4 VDC
- Max. Turn-Off Voltage: 1 VDC
- Max. Input Current: 25 mA
- Max. Reverse Protection Voltage: -32 VDC
Output Parameter (Ta=25°C)
- Output Accepts: M5 Screws
- Load Voltage Range: 48 - 530 VAC
- Max. Transient Voltage: 1200 Vpk
- Load Current Range: 80 Arms
- Max. Surge Current (10 ms): 1250 Apk
- Max. l²t for fusing (10 ms, A²S): 7800
- Max. Off-State Leakage Current: 10 mA
- Max. On-State Voltage Drop: 1.7 Vrms
- Min. Power Factor: 0.5
- Max. Turn-On Time: 1/2 Cycles + 1 ms
- Max. Turn-Off Time: 1/2 Cycles + 1 ms
- Frequency Range: 47 - 63 Hz
- Min. Off-State DV/DT: 500 V/µs
General (Ta=25°C)
- Dielectric Strength (50 Hz / 60 Hz):
  - Input, Output to Base 2500 VAC, 1 min
  - Input to Output 4000 VAC, 1 min
- Insulation Resistance: 1000 MΩ (500 VDC)
- Max. Capacitance (Input to Output): 8 pF
- Operating Temperature: -30°C - 80°C
- Storage Temperature: -30°C - 100°C
- Ambient Humidity: 45% - 85% RH
- Unit Weight: 125A Type Approximately 130g
