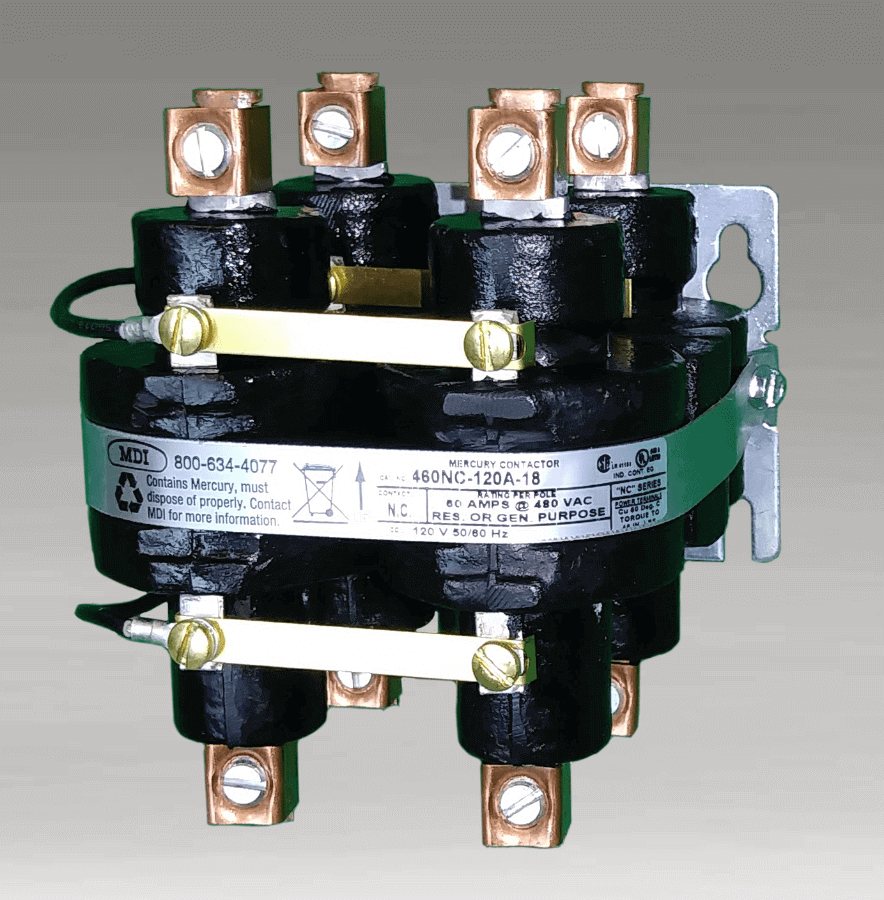

Mercury Relay - 60 AMP - 4 Pole - 125 VDC Coil - Normally Closed

SKU: 460NC-125D-18

Mercury Displacement Relays are all designed and built to meet the most exacting demands of industry. They have won their high place in the electrical field by doing the tough and tricky jobs that ordinary equipment could at best do in an uncertain manner. They have proved their ability to stand up under the most adverse conditions of temperature, dust and moisture, in all types of applications.

The 60-AMP normally closed contactors are designed and manufactured to high quality specifications and the contactors are commonly used in various heating, lighting, and many other industrial applications including high voltage ultraviolet type loads. The contacts are encased in hermetically sealed stainless steel tubes to provide reliable switching for millions of operations. MDI has manufactured this contactor since 1975. It is available in the single, two, three & four pole models.

 460NC-125D-18 SpecSheet

Manufacturer: MDI Relays & Switches

Weight: 3.9 lb
Stock Quantity: Made to Order

Delivery: Ships in 5-8 Business Days

Please use the "Request a Quote" form

  • Coil Data
    • 850 Ω
    • 148 mA
    • 18.4 VA
    • 18.4 Watts
    Coil: 125 V.D.C.
  • Contacts:
    • 60 AMP @ 480 VAC General Purpose
  • Contact Resistance: .002 ohm
    • After Cycling Under Load

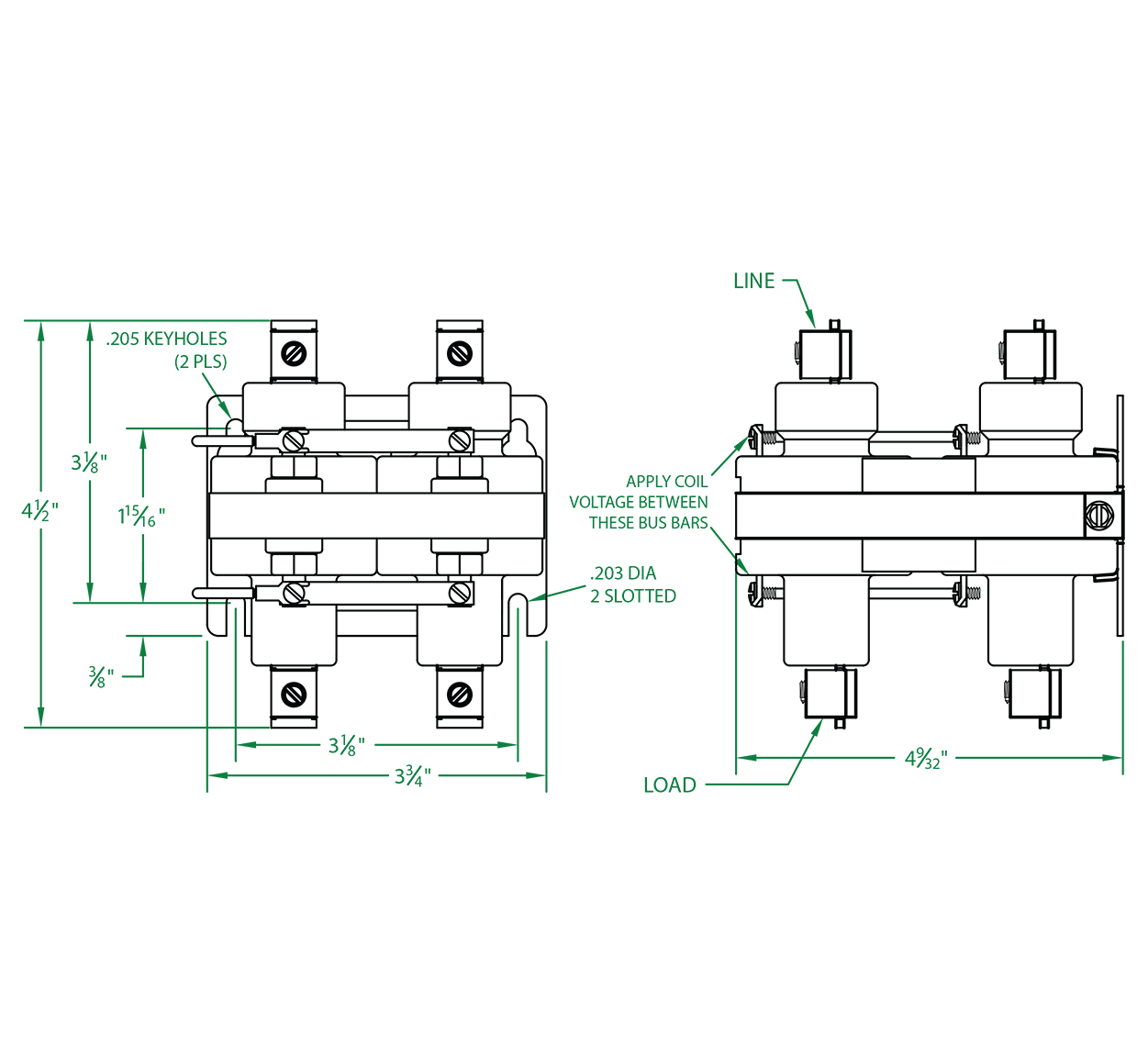

    Torque Specifications
    • Coil Screws: 7 in-lb
    • Terminal Screws: 45 in-lb
  • Coil Terminals: #6 Binding Head Screws
  • Load Terminals: 2-8 AWG Compression Type
  • Operate Time: 30 milliseconds
  • Release Time: 35 milliseconds
    Dielectric Withstand: 2500 VAC RMS
  • Longevity: Millions of Cycles
  • Temperature Range: -35°C to 85°C
  • AC Resistive
    • 240 VAC @ 60 AMPS
    • 480 VAC @ 60 AMPS
  • AC Inductive
    (P.F. 0.4 or Greater)
    • 120 VAC @ 30 AMPS
    • 240 VAC @ 20 AMPS
  • General Purpose
    (P.F. 0.7 or greater)
    • 240 VAC @ 60 AMPS
    • 480 VAC @ 60 AMPS
  • DC Resistive Heating
    • 48 VDC @ 60 AMPS
    • 125 VDC @ 40 AMPS
    • 250 VDC @ 20 AMPS
  • Tungsten Lamp
    • 120 VAC @ 60 AMPS
  • Motor Loads
    • Single Phase
      • 120 VAC @ 3 H.P.
      • 240 VAC @ 5 H.P.
    • Three Phase
      • 240 VAC @ 7.5 H.P.
      • 480 VAC @ 10 H.P.

Made in the USA

markings 6.png

MDI Inc. Our Company!

See all MDI Electrical Products
Mercury Displacement Industries Incorporated, better known in the industry we serve as MDI, was incorporated in Michigan in 1975. The primary product line is switch gear components including mercury type contactors, tilt switches and liquid level float controls.
Contactors are rated from 30 to 100 Amperes and are commonly used in various heating, lighting, and many other industrial applications including high voltage ultraviolet type loads. The contacts are encased in hermetically sealed stainless steel tubes to provide reliable switching for millions of operations. All basic units are UL, CSA, and CE approved.
The liquid level control floats are manufactured with mechanical or mercury switches. The float material is High Impact Polystyrene for normal alarm, sump pump or water applications, For sewage, 1 or 2 H.P. or high temperature, 86°C (186°F) requirements Acrylonitrile Butadiene Styrene, (ABS) float material is provided.
MDI has 40 to 50 employees and markets products through distributors, representatives or direct to OEM accounts throughout the world.

MDI Quality Policy
It is the policy of MDI to manufacture and market products of excellent quality, durability and reliability. This policy emphasizes the importance of product reputation and customer satisfaction in the success of our business. The MDI Team is committed without exception to the continuous improvement in quality and cost, and to manufacturing productivity and efficiency.

Since 1975
MDI Quality - Durability - Reliability

Call Us Toll Free: (800) 634-4077

Request a Quote

All the care required for the manufacture of high-grade instruments is used in the manufacture of the switches. All switch parts are specially cleaned, and contamination is avoided by use of tweezers, gloves, etc., when making assemblies.
Contactors are hermetically sealed with high quality glass to metal seals.
The stainless steel tube is totally encapsulated in high grade UL approved epoxy to prevent moisture damage and voltage breakdown through the protective coating.
The coils are wound on compact nylon bobbins and molded onto the metal tube to provide minimum power loss. This allows for low coil power required to actuate the contactor. This also enables the units to handle high loads with minimum derating due to higher ambient temperatures.
Inert gases internally prevent excessive arcing between the mercury and the electrodes which enables the unit to function for millions of cycles with very low contact resistance, and minimum deterioration of the internal parts.
Available in all standard coil voltages, in single, two and three pole arrangements. Other coil voltages available upon request.
In multiple pole units each tube is actuated by its own coil. This eliminates pull-in variation between contact tubes, assuring consistent switching.

The load terminals are isolated from each other by the glass in the hermetic seal. "The plunger assembly", which includes the ceramic insulator, the magnetic sleeve and related parts, floats on the mercury pool. When the coil is powered causing a magnetic field, the plunger assembly is pulled down into the mercury pool which is in turn displaced and moved up to make contact with the electrode, closing the circuit between the top and bottom load terminal, which is connected to the stainless steel can. For constant duty applications, a return spring is used in place of the buffer spring.

While MDIs contactors handle high inrush, such as lamp loads, very well, mercury contactors are susceptible to damage by short circuit currents, and should be fused to minimize short circuit fault currents. Fast acting UL class RK-1 and class J fuses and semiconductor I²t fuses more effectively protect relays than other fuses. These are low-peak fuses designed to limit short circuit currents. Regardless, when there is a short circuit, relay operations should be closely monitored afterward because of the possibility of concealed damage that could cause the relays to behave inconsistently.
