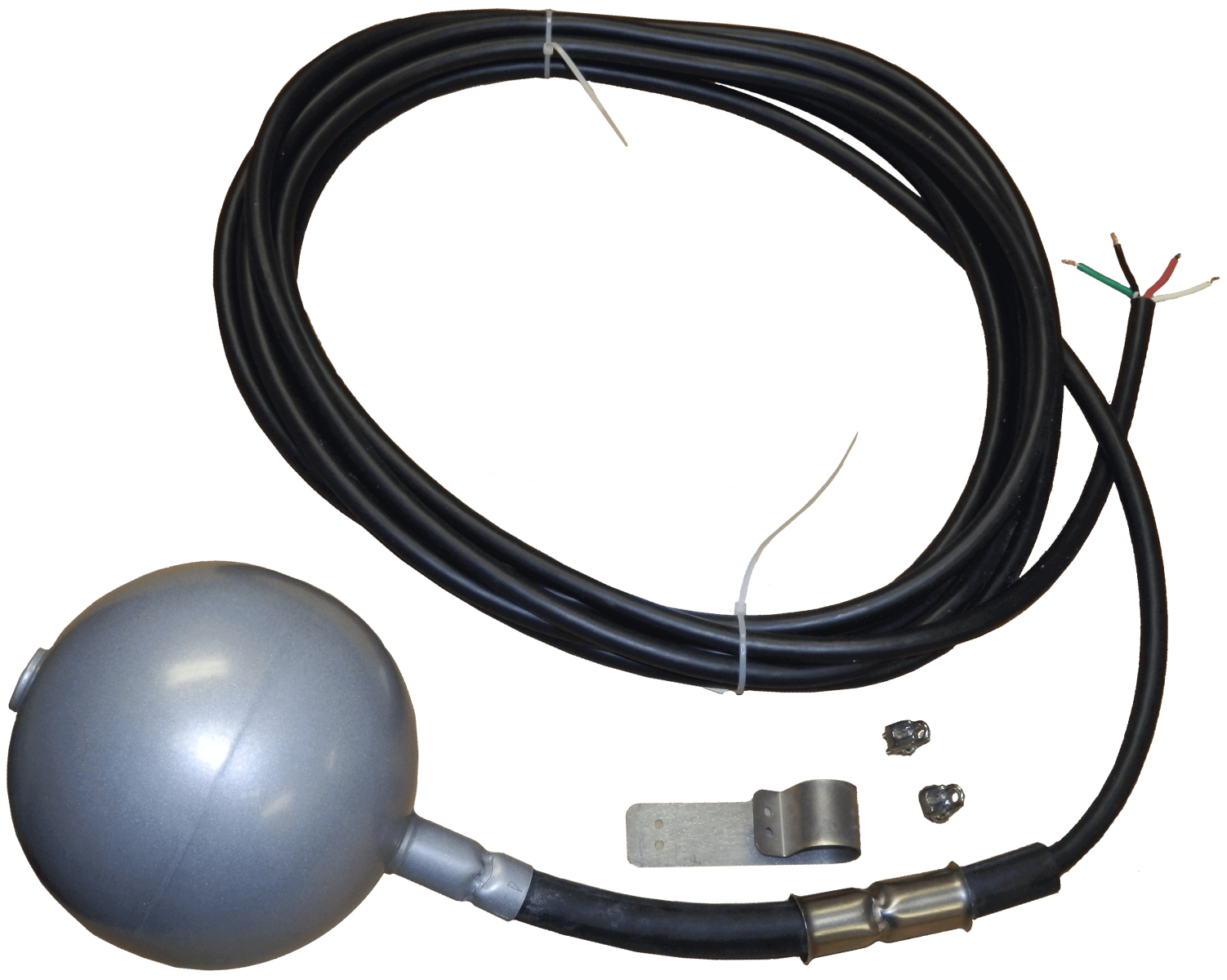

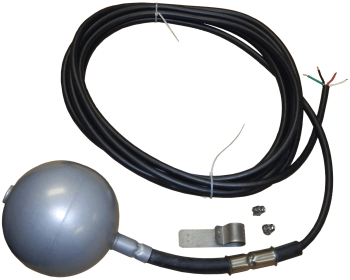

Stainless Steel Float 316 - 5½” Dia. - 40 foot Cord - Mercury Free Switch

SKU: FS-90-40

Price: $374.99

Contegra's FS 90 is an environmentally friendly, non-mercury, 5-1/2" diameter, Direct Acting Float Switch that's made of Type 316 stainless steel. FS 90 is a rugged, reliable raw sewage or sewage wet well, point-level sensing device. It is well-suited for use in a process sump or water reservoir sensor where its simplicity of operation, quality, and ruggedness provide years of reliable service.

(Double Throw (SPDT) float can be used in either Normally Open / Pump Down or Normally Closed / Pump Up applications)

Need a Weight Kit?
PM-590 Weight Kit
Please Select this Product Options Below.

PDF Spec Sheet

Manufacturer: Contegra

Weight: 6 lb

Delivery: Ships in 4-10 Business Days

  • Operation:
    • Double Throw - SPDT (Pump Down or Pump Down)
  • Cord:
    • 40' Flexible 16 Gauge 4 Conductor SEOW
  • Ratings:
    • 13 AMP @ 120/240 VAC
    • 1/2 H.P. @ 120/240 VAC
    • 58.8 LRA
  • Operating Angle: Wide Angle (8” Differential)
  • Housing:
    • 5 ½” Diameter Float for Exceptional Buoyancy
  • Float Material:
    • 316 Stainless Steel Float Ball and Hardware
  • Float Switch:
    • Mercury Free Switch
      • Long-life Mechanical Rating
      • Differential Action
      • Form C Contact
