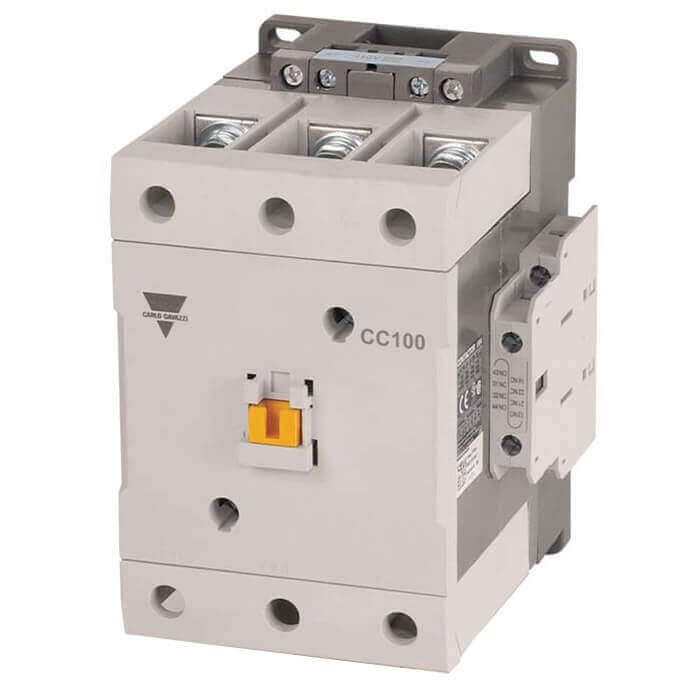

MIDI Relays (IEC Contactors) - 160 AMP Resistive Relay - 3 Pole - AC Control
SKU: CC100LA120
Price: $221.99
- 3-Pole (NO) main contact
- Finger Proof Design
- DIN-Rail or Screw Mountable
- 2NO2NC Auxiliary contacts built-in as standard
- Up to 1,800 Operations Per Hour
- Lug Termination Type
Download PDF here
Manufacturer: Carlo Gavazzi
Weight: 4.26 lb
Delivery: 1 - 6 weeks
- Resistive Current (AC1): 160A @ 690 VAC
- Motor AC Single Phase
- 110~120 VAC: 10HP
- 50/60Hz 220~240 VAC: 20HP
- Motor AC Three Phase
- 220~240 VAC: 40HP
- 440~480 VAC: 75HP
- 550~600 VAC: 75HP
- Motor Current (AC3)
- 200~240 VAC: 30kW 105A
- 380~440 VAC: 55kW 105A
- 500~550 VAC: 55kW 85A
- 690 VAC max: 45kW 65A
- Control Voltage AC Coil VAC 50/60 Hz: 120 VAC

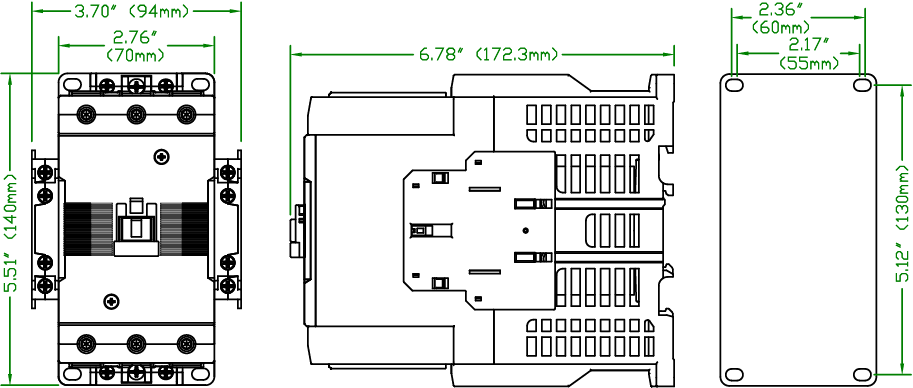

- Basic Dimensions W x H x D mm AC Coil: 3.70 x 5.51 x 6.78" (94 x 140 x 172.3mm)
- Accessories Auxiliary Contacts Standard: 2N02NC
- Mechanical Interlock: GUR02
- Output Terminal: Lug
- NEMA Size: 3
