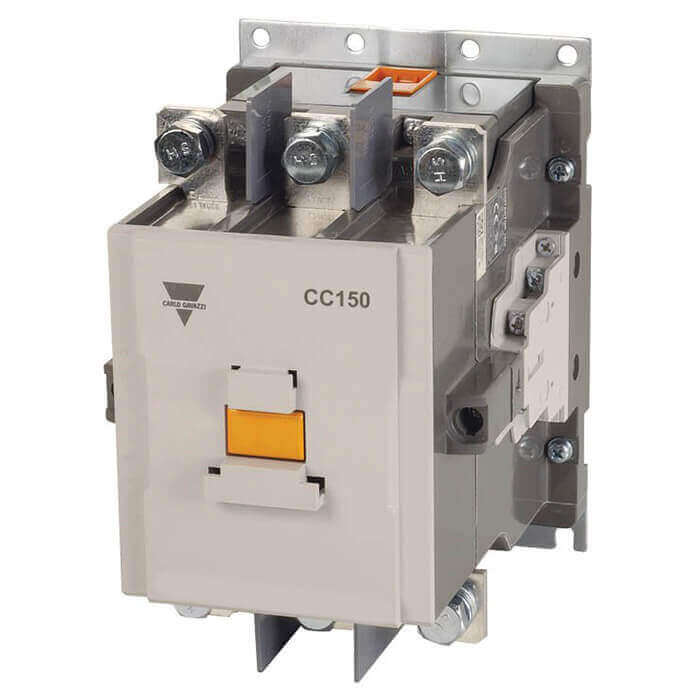

MIDI Relays (IEC Contactors) - 210 AMP Resistive Relay - 3 Pole - AC Control

SKU: CC150LA110

Price: $406.99

  • 3-Pole (NO) main contact
  • Finger Proof Design
  • DIN-Rail or Screw Mountable
  • 2NO2NC Auxiliary contacts built-in as standard
  • Up to 1,800 Operations Per Hour
  • Lug Termination Type

PDF Download PDF here

Manufacturer: Carlo Gavazzi

Weight: 5.25 lb

Delivery: 1 - 6 weeks

  • Resistive Current (AC1): 210A @ 690 VAC
  • Motor AC Single Phase
    • 110~120 VAC: 15HP
    • 50/60Hz 220~240 VAC: 25HP
  • Motor AC Three Phase
    • 220~240 VAC: 50HP
    • 440~480 VAC: 100HP
    • 550~600 VAC: 75HP
  • Motor Current (AC3)
    • 200~240 VAC: 45kW 150A
    • 380~440 VAC: 75kW 150A
    • 500~550 VAC: 70kW 100A
    • 690 VAC max: 55kW 60A
  • Control Voltage AC Coil VAC 50/60 Hz: 110 VAC

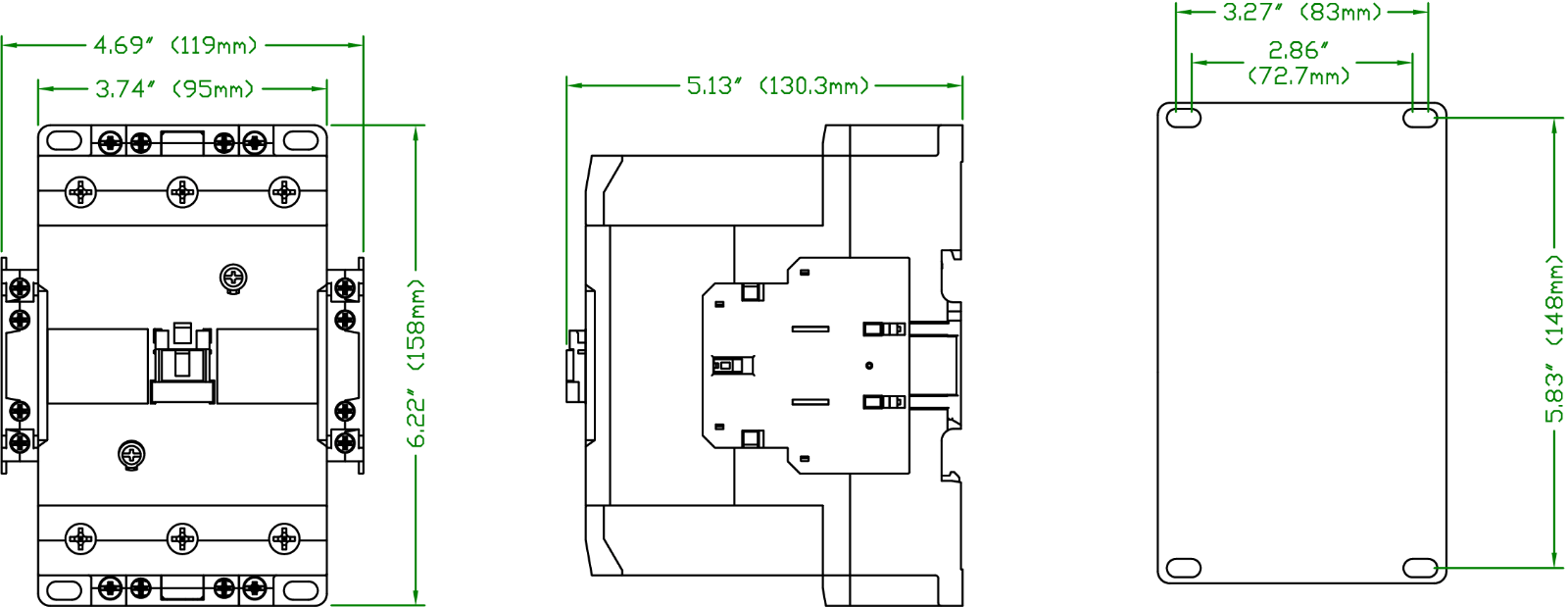

  • Basic Dimensions W x H x D mm AC Coil: 4.69 x 6.22 x 5.13" (119 x 158 x 130.3mm)
  • Accessories Auxiliary Contacts Standard: 2N02NC
  • Mechanical Interlock: GUR02
  • Output Terminal: Lug
  • NEMA Size: 4
