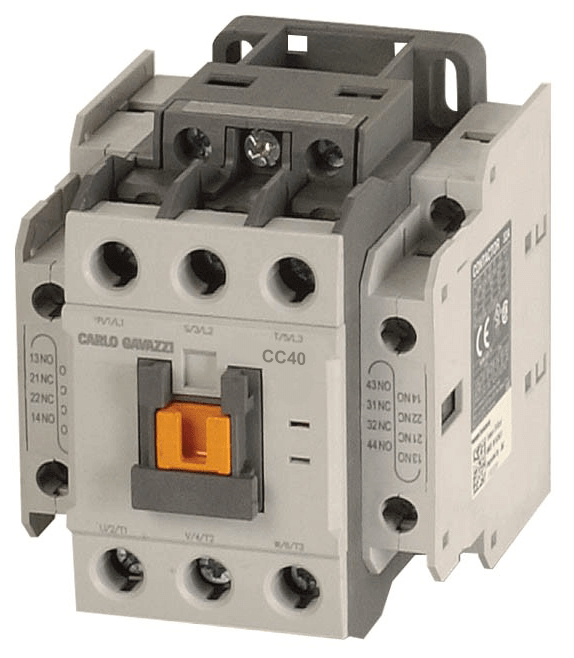

MIDI Relays (IEC Contactors) - 60 AMPS Resistive Relay - 3 Pole - AC Control
SKU: CC40SA120
Price: $71.99
Could be used as a Single Pole, Two Pole or Three Pole Unit.
- 3-Pole (NO) main contact
- Finger Proof Design
- DIN-Rail or Screw Mountable
- 2NO2NC Auxiliary contacts built-in as standard
- Up to 1,800 Operations Per Hour
- Screw Termination Type
CC40 Spec Sheet
Manufacturer: Carlo Gavazzi
Weight: 1.22 lb
Delivery: 1 - 6 weeks
- Resistive Current (AC1): 60AMPS @ 690 VAC
- Motor AC Single Phase 50/60Hz
- 110~120 VAC: 3HP
- 220~240 VAC: 7.5HP
- Motor AC Three Phase
- 200~208 VAC: 15HP
- 220~240 VAC: 15HP
- 440~480 VAC: 30HP
- 550~600 VAC: 30HP
- Motor Current (AC3)
- 200~240 VAC: 11kW 40A
- 380~440 VAC: 18.5kW 40A
- 500~550 VAC: 22kW 32A
- 690 VAC max: 22kW 23A
- Coil Voltages AC Coil VAC 50/60 Hz: 120 VAC

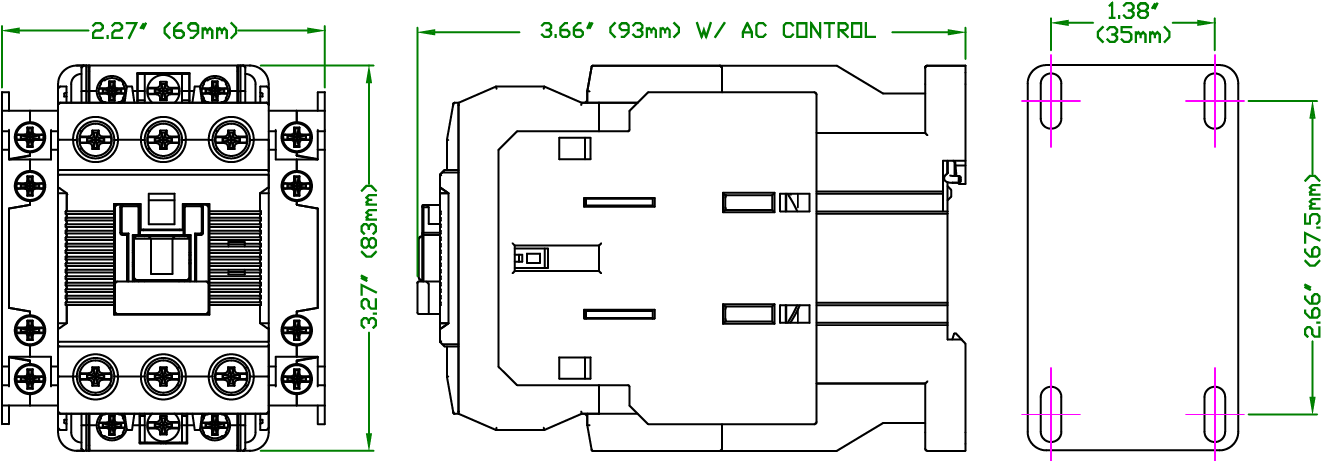

- Basic Dimensions W x H x D mm AC Coil: 1.38 x 2.66 x 3.66" (35 x 67.5 x 93mm)
- Accessories Auxiliary Contacts Standard: 1NO1NC
- Output Terminal: M5 Screw Clamp
- NEMA Size: 1
